Single post car lifter

HOME > OBEC > Car Lifter > Single post car lifter >

OBC-TL7500 Wireless heavy duty automatic hydraulic mechanica

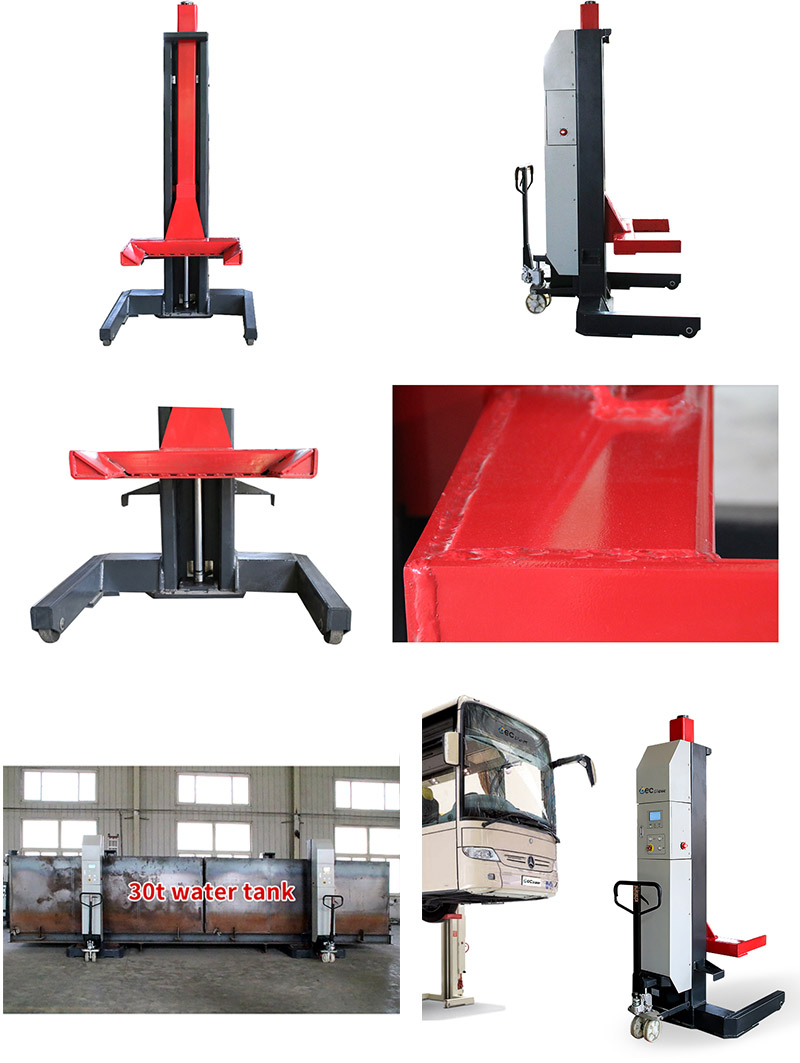

  • Wireless heavy duty automatic hydraulic mechanical truck bus lift
  • Product Introduction
  • Specification
Lifting Capacity (kg) 7,500
Fork type Adjustable
Fork Length (mm) 350
Fork width (mm) 240 - 560
Lifting time 75s
Lifting arm length 350mm
Lifting system hydraulic lifting system and microprocessor control synchronization equipment
Lifting height max.1850mm; automatically stops when reaches the maximum height
Motor power 2.2/3.0 kw/column (best/wireless)
Weight 570kg/column (wireless)
Column height 2465mm

advantage
Battery & charger
    Save time for plug-in/off
    Operate the lifts anytime & anywhere
    No tripping hazard to operators
LCD screen display
    Real-time lifting height
    Continuously monitored battery condition
    Mode type
    Multi languages option
    Troubleshooting for any fault
Safety
    Automatic stop when highest point is reached
    Throttle valve & mechanical lock
    Automatic stop when either column has 50mm height difference
Advanced synchronization system
    The set can go up & down smoothly even if the truck is unevenly loaded to each column Each column has the operation & emergency buttons for easy access.
IP 54 water-proof
CE approved
