Specification
|
Length
|
5600mm/5800mm/5900mm
|
Width
|
2200mm
|
Height
|
550mm
|
Air supply
|
0.8Mpa
|
Hydraulic power
|
70Mpa
|
Pulling Capacity
|
100KN
|
Padius of pulling
|
360°
|
Max.load
|
3500KGS
|

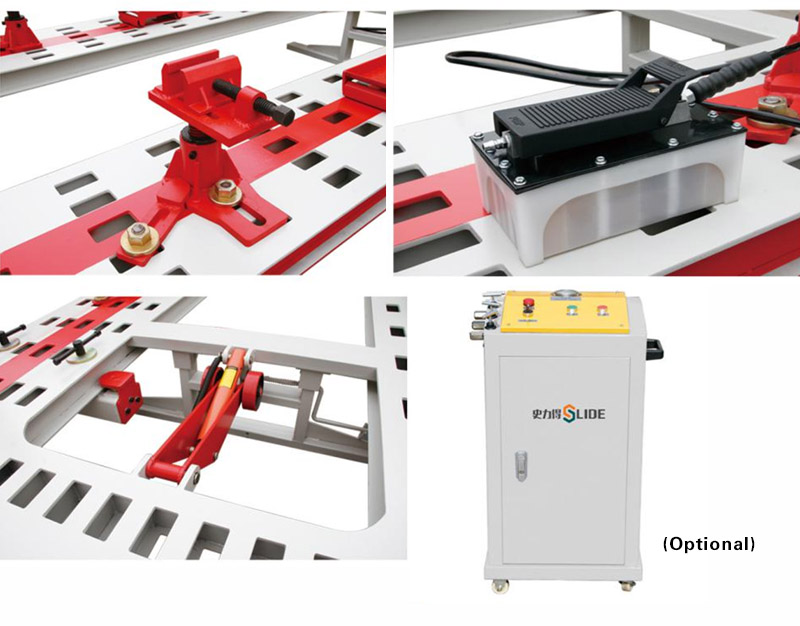

1.Hydraulic tilting lift platform assists light and flexible movable legs, making it easier to get on and off the car in any accident.
2.Flat square hole working platform, five rows of square holes, the whole table is processed by large CNC flame cutting equipment, high flatness, high strength, fixed no blind area, stretching faster.
3.The traction tower can be rotated 360* along the working platform track. The unique roller rotation mechanism makes the movement of the tower more stable and more flexible.
4.The unique design of the main fixture spiral lifting method, with the jaws held horizontally, the screw can be lifted up and down, the height is fine-tuned, and the vehicle can be quickly adjusted for different chassis heights.
5.The jigs designed by mechanics flow lines have been forged and heat-treated. They have high strength and long service life. They have almost taken into account the correction of any deformation.
6.The hydraulic pump station is tailor-made according to the domestic maintenance environment, with strong power and durability. Maintenance is convenient and fast, accessories are adequate, and maintenance costs are low.
