Floor plate car lifter
  • Product Introduction
  • Specification

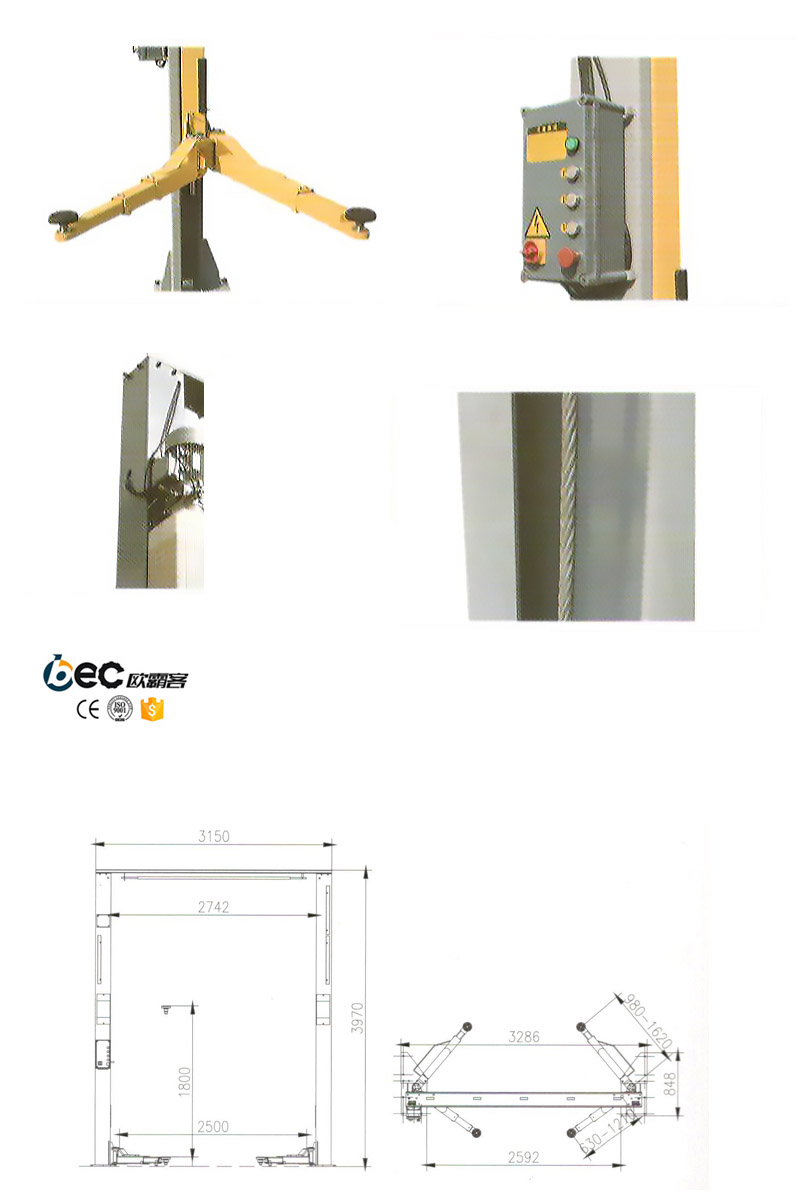

OBC-302S
Model No. OBC-302S
Lifting capacity 4T
Max lifting height 1800MM
Minimum height 123MM
Lifting time ≤50S
Overall width 3286MM
Overall height 3970MM
Motor voltage 380V/220V
Motor power 2.2KW
Package size 3690*465*735MM
Lock release Bilateral Manual lock release Or Electric lock release (Optional)
  • Features

1. Column eight bends
2. The slide holder is bent once
3. Double side manual unlocking.
4. Wire rope balance system
5. The cylinder 100% passed the pressure test
6. High quality power unit, safe and reliable operation
7. After 115% dynamic load test, 150% static load test
