Diesel heating

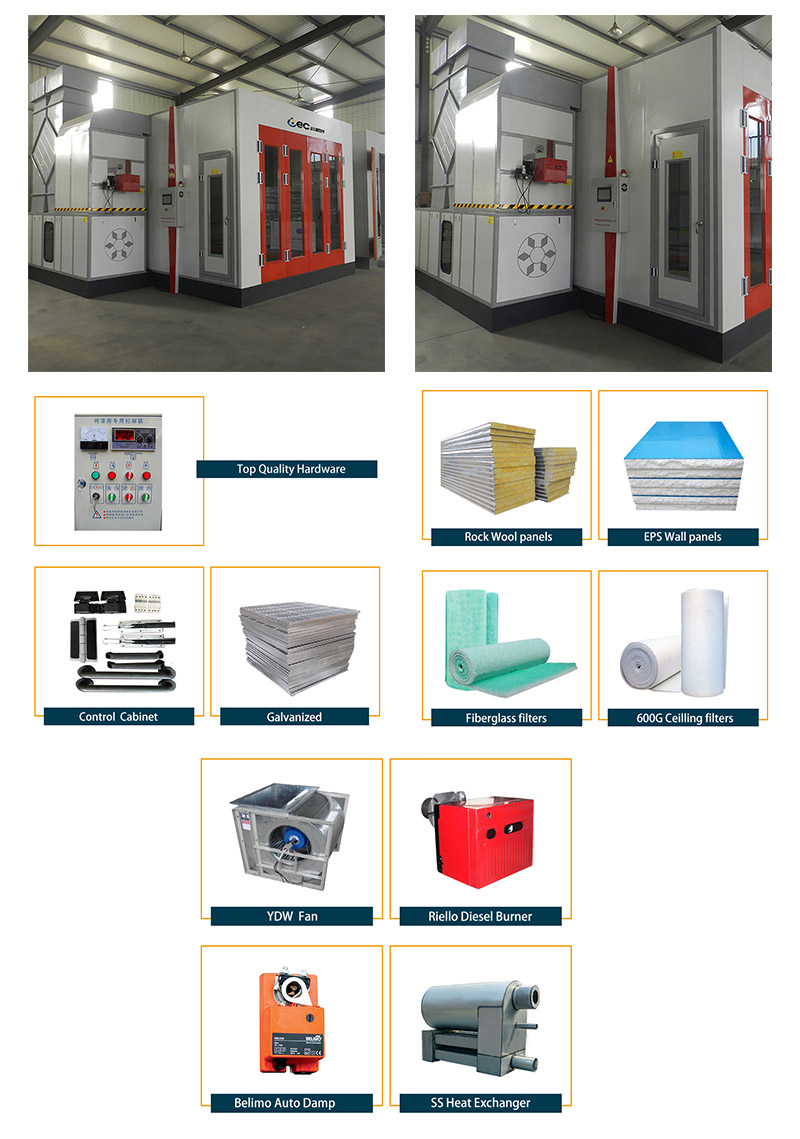

  • Product Introduction
  • Specification

Outside size 7100*5550*3600mm(L*M*H)
Inside size 7000*4000*2800(L*M*H)
Entrance door 4folds,3200*2700mm(W*H)aliminum alloy covered frame
Emergency door 800*2000mm(W*H),equipped with handle lock
Cabinet Wall panel 50mm rock,wool,0.5mm thick steel,fire proof and heat-insulation
High quality galanized steel roof panel
Basement Galvanized steel assemble,300mm high,quadrate steel support,5 rows of grils,with height adjustable bolts
3 ramps,external setting,900*2000mm(W*L)/pc
Ventilation system  Inlet fan 1*7.5kw single-intake turbo fans,air capacity:25000m³/h for each set
Outlet fan 1*7.5kw single-intake turbo fans,air capacity:20000m³/h for each set
Cabinet setting type Intake air from side upper,adopt powder quadrate steel frame,strong and beautiful
Cabinet for the fan*1unit,air duct*2m long*1unit
Elbow:90°*1 unit
Airflow speed 0.4m/s,ventilation rate 320time/h
Heating system Burner Italy RIELLO RGSS oil burner,heating capacity:260000kcal/h,with BELIMO 20N electric damper
Heat Exchanger 2mm thickness SUS304 stainless steel
Cabinet Rock-wool insulation*1 unit
Lighting system Ceiling lights 32pcs*16w Philip tubes with electronic ballast
Side lights 40pcs*16w Philip tubes with electronic ballast
Filtering system Primary filter Grade G2 plate type,filtering rate>83%
Ceiling filter EU5 grade high efficient filter,filtering rate>98%
Floor filter Multi-layer fiberglass filter,filering rate>70%
Control system Active carbon Grade G4,purifying rate of bug dust≥85%
Control panel Micro-computer control system
Fuction Lighting,temerature time setting,painting,constant temperature painting,baking,emergency stop,failure indication tine accumulate,etc
Total power 18KW
Voltage/Frequency 380V,50HZ,3phase
