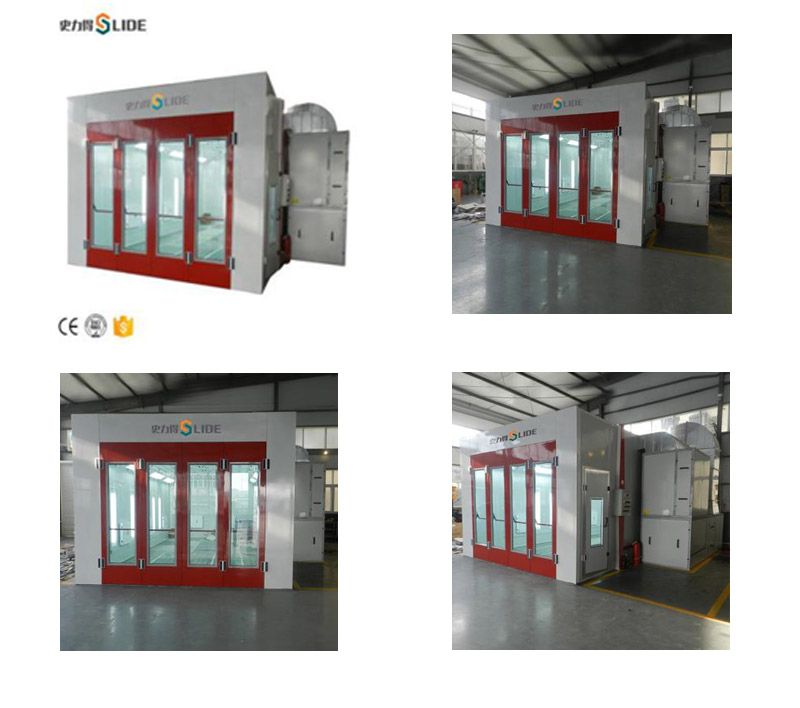

E50 Diesel/Electric Heating Paint Booth

Outside size


Inside size


Entrance door

3 folds door , 2800×2500mm ,it is bending steel without cover frame.

Emergency door

1fold ,600×2000mm(W×H).

Main System

Cabin System

Wall Panel

-High quality double construction insulation EPS panel, thickness: 75mm.


- Galvanized steel assemble,Full metal foundation, height is 280mm .
- Five rows flat steel Grilles (galvanized)
- 3 pieces of Ramps, each size 970×2000mm (W×L),diamond plate construction.

Ventilation System

Inlet fan

2×4KW YDW double-intake centrifugal fans, total air capacity: 24000m³/h.

Outlet fan

1×5.5KW YDW double-intake centrifugal fans, total air capacity:18000m³/h.

Cabinet setting type

Back upper intake air, power quadrate steel frame,coated steel.

Airflow speed

0.4m/s, ventilation rate: 320times/h

Heating System


-1set : RIELLO G20 diesel burner, heating productivity: 200000 Kcal/h,

Heat Exchanger

1.2mm thickness SUS304 stainless steel with anti-explosion hole for protection,working temperature is 80℃, electric damper from spraying to baking cycle.

Lightening system

Ceiling lights

-LED Ceiling lights:8 units×3pieces =24pieces ×36W.

Side lights

-LED Side lights: 10units × 2 pieces =20pieces ×36W

Filtering System

Intake air:pre-filter,high efficiency filter(ceiling filter)
Exhaust air: fiberglassfilter, exhaust activated carbon filter.

Control System

Lighting switch,spraying, risen-temperature,baking temperature controller, time setting,emergency stop,limited-temperature controller
Time setting emergency stop, limited-temperature controller,time accumulator.
