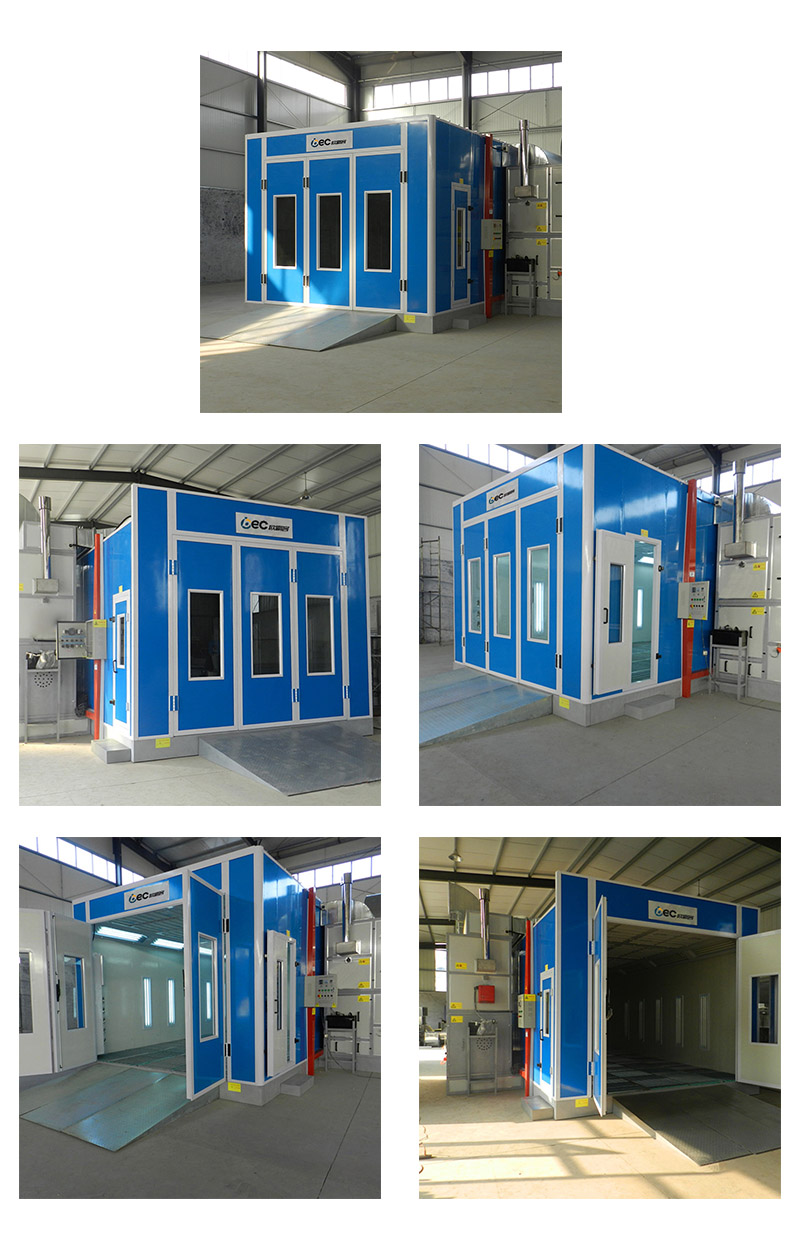

Electric Heating Car Spray Booth OBC-E5

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000x2600 mm(W×H), aluminum alloy covered frame

Emergency door

650*1800mm(W*H),equipped with handle lock

Main System

Cabin system

Wall panel

-Sandwich style EPS 50mm,0.426mm thick steel,  anti-flame and heat-insulation.
-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,300mm high,quadrate steel support,2 rows of grills,3 rows of indented plates.
-3 ramps,external setting,900*2000mm(W*L)/pc

Ventilation system

Inlet fan

1*7.5KW turbo fan, air capacity: 25000m³/h, direct drive,with Siemens technology production

Outlet fan

1*7.5KW turbo fan, air capacity: 25000m³/h, direct drive,with Siemens technology production

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-Air duct*2m long*1unit,
-Elbow:90°*1 unit

Airflow speed

0.4m/s,ventilation rate:315time/h

Heating system

With 10 units high energy shortwave infrared lamps for heating. 3pcs/ unit, each lamp 1LW, total power :30KW .
(Option: Baking power regulator)

Lighting system

Ceiling lights

32pcs*36w Philip tubes with electronic ballast .

Side lights

16pcs*36w Philip tubes with electronic ballast .

Filtering system

Primary filter

Grade G2 plate type , filtering rate＞83%

Ceiling filter

EU5 grade high efficient filter,filtering rate＞98%

Floor filter

Multi-layer fiberglass filter,filtering rate＞70%

Control system

Control panel

Micro-computer control system

Function

Painting, risen-temperature painting, baking, time setting, lighting,  failure indication, thermostatic switch, power switch, emergency stop

Voltage/Frequency

380V,50HZ,3 phase

Total power

49 KW
